3D standard welding and clamping table 28 mm

Our 3D standard welding table with 28 mm hole system is the centrepiece of a sophisticated, modular welding table system. This model can be extended on all five sides as required and therefore enables the greatest possible flexibility in the workshop, industry and production.

# # # # # # # #

Details at a glance

• Drilling tolerances accurate to hundredths of a millimetre
  and the milled surface (+/- 0.05 mm) -
• Excellent electrical conductivity
• Exact dimensional accuracy and accuracy of fit of the tools, therefore also compatible with comparable premium suppliers

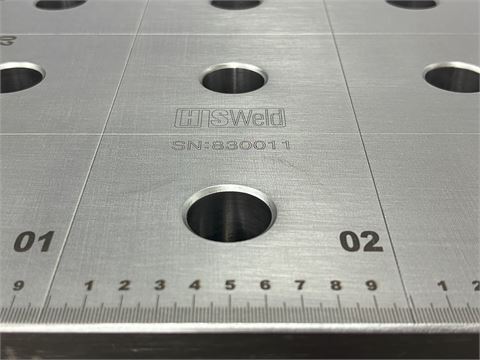

• 2-sided millimetre scaling for 3D and 2D table systems
• Optional diagonal perforation on the top of the table

Product description

• S355J2+N with Cr75M+ hardening treatment
• Hole: 28 mm, material thickness: 25 mm

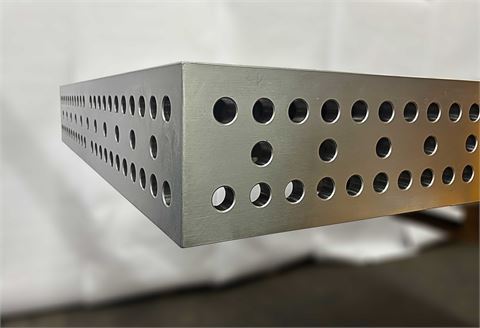

• Including coated table substructure ◦ 200 mm side panel with 3-row hole pattern with upper and lower 50 mm system row and additional centre row in 100 mm grid - results in significantly higher clamping options
• Rounded edges and holes
• Solid standard table legs with load capacity of 2 t per leg; 700 kg per leg for castor model

Your benefits when purchasing a 28 mm 3D welding table

• Also available with diagonal perforation on the top of the table
• Table substructure with increased mounting option for table legs (depending on model)
• Expandable 3D system: Can be freely combined in all directions - even retrofitted
• Precision at industry level: ± 0.05 mm tolerance across the entire table surface
• High compatibility: Fits accessories from leading premium suppliers
• Extremely resilient: 25 mm thick material & up to 2 t load capacity per table leg
• Ergonomic & safe: rounded edges & excellent readable scaling
• Professional grid: 100 x 100 mm grid lines and additional third row of holes as standard
