HISWeld angle bracket for 16 mm systems

Discover high-quality HISWeld angle brackets for your 16 mm welding table system, which offer a wide range of clamping and fixing options thanks to their optimised hole pattern and three-dimensional design. Specially developed for light to heavy workpieces, these brackets are ideal as a stop or robust table extension.

Locating angle

HISWeld locating angle are the ideal solution for precise work in metal processing and welding technology. Thanks to precisely manufactured slotted holes and system bores, the angle bracket can be flexibly adjusted, variably or permanently fixed and optimally adapted to the respective application. Rounded and reworked holes and edges ensure a high fitting accuracy and safe handling. Thanks to their robust design and compatibility with other clamping tools, our locating angle guarantee maximum stability, repeat accuracy and efficiency - both for simple clamping tasks and for complex welding and production processes.

Locating angle 90x37x25mm, long and 1-hole version
Item no. HIS16WA9037

The 90x37mm universal locating angle can be guided precisely through the slotted hole and can be fixed in place. It is also suitable for use with prisms. Drilled holes and edges rounded and reworked.

Locating angle 90x90x25mm, long and 3-hole version
Item no. HIS16WA9090

The 90x90mm universal locating angle can be fixed or variably fixed thanks to the combination of slotted hole and system hole. It is also suitable for use with prisms. Drilled holes and edges rounded and reworked.

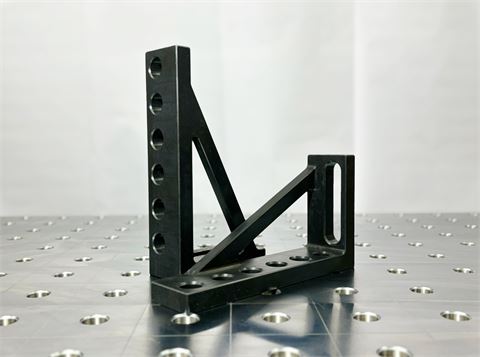

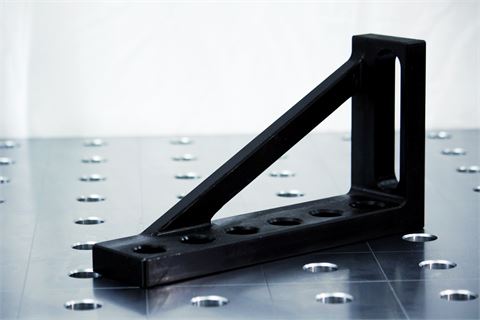

Stop and Supporting Angle

Our stop and supporting angles for the 16 mm HISWeld welding table system offer you maximum precision and flexibility when processing small to medium-heavy workpieces. Thanks to their three-dimensional design, they enable a wide range of clamping and positioning options - ideal for precise work in confined spaces. At the same time, they can be used as a versatile stop or practical table extension.

For optimum results, we recommend ordering in pairs.

Available in the models:

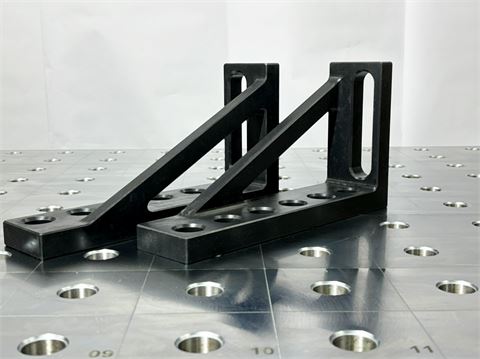

• Stop and supporting angle 200x150x50mm, left and right, illustrated
  Item no. HIS16WA200L+R
• Stop and supporting angle 400x200x50mm, left and right
  Item no. HIS16WA400L+R
• Stop and supporting angle 500x195x50mm, left and right
  Item no. HIS16WA500L+R

• Supporting angle 300x150x50mm with strut
  Item no. HIS16W300

• Supporting angle 600x200x50mm, left and right
  Item no. HIS16W600L+R
• Supporting angle 750x200x100mm, left and right
  Item no. HIS16W750L+R

HISWeld angle brackets are indispensable tools for precise clamping, positioning and fixing of workpieces in modern metalworking and welding technology. Thanks to their robust design, exact hole patterns and high dimensional accuracy, they offer maximum stability and flexibility - from simple stop solutions to complex clamping tasks. Whether as a stop, table extension or in combination with other clamping tools, our angle brackets guarantee maximum precision, repeat accuracy and efficiency for every application. This makes them the ideal addition for professional users who prioritise quality and reliability.
